HDA436T CAN2.0 Dynamic Attitude Sensor MEMS Gyro Sensor Angle Measuring

Name: HDA436T CAN20 Dynamic Attitude Sensor MEMS Gyro Sensor Angle Measuring
Brand: RION
Price: 161.00 USD

Buy cheap HDA436T CAN2.0 Dynamic Attitude Sensor MEMS Gyro Sensor Angle Measuring product

Model Number : HDA436T-232-68

Place of Origin : Guangdong, China

Brand Name : RION

Packaging Details : cartons

Price : $161.00/Pieces

Certification : CE, ISO

MOQ : 1

Payment Terms : T/T, Paypal

Supply Ability : 5000/month

Delivery Time : 7 days for samples

protection class : IP67

High Resolution : 0.01°

Highly anti-vibration performance : >2000g

Zero temperature coefficient : ±0.01 °/℃

Sensitivity temperature coefficient : ≤100ppm/℃

Power on time : 1s

static accuracy : ± 0.05°

dynamic accuracy : ± 0.3°

Contact Now

New Generation CAN2.0 Dynamic Sensor for Excavators Angle Measuring

▶ PRODUCT DESCRIPTION

HDA436T CAN2.0 Dynamic Attitude Sensor MEMS Gyro Sensor Angle Measuring

HDA436T,A new generation of digital MEMS dynamic tilt sensor launched by RION Technology. It can measure the attitude parameters (roll, pitch, and azimuth) of a moving carrier, and suitable for tilt angle measurement under motion or vibration.

▶ PRODUCT FEATURES

★ Range (Roll angle ± 180 °, pitch angle ± 90 °, azimuth angle ± 180 °)

★ Dynamic accuracy: ± 0.1 °

★ DC 9 ～ 36V wide voltage input

★ Wide temperature operation -40 ～ + 85 ℃ ★ Resolution 0.01 °

★ IP67 protection level ★ High anti-vibration performance> 2000g

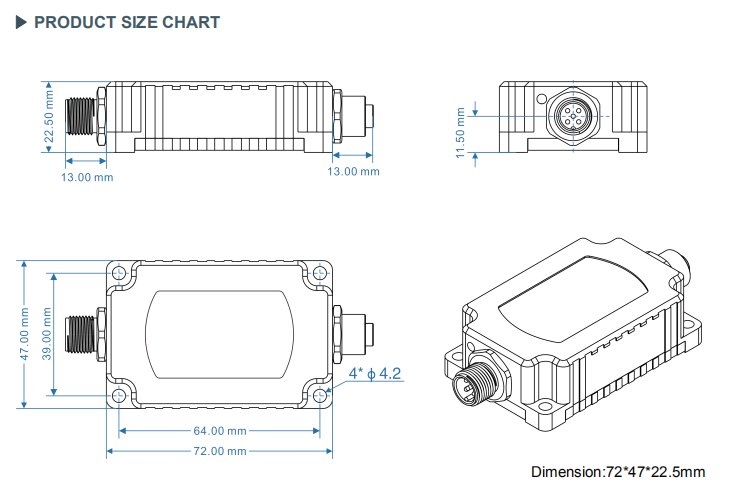

★ Size: L72XC47X H22.5mm

▶ APPLICATION

★ Satellite search satellites

★ Railway locomotive monitoring ★ Oil drilling equipment

★ Shield pipe jacking application ★ Radar vehicle platform detection

HDA536T	Condition	Index
Measuring	/	Roll ± 180 °, pitch ± 90 °, azimuth ± 180 ° (initial value at power-down is 0 °)

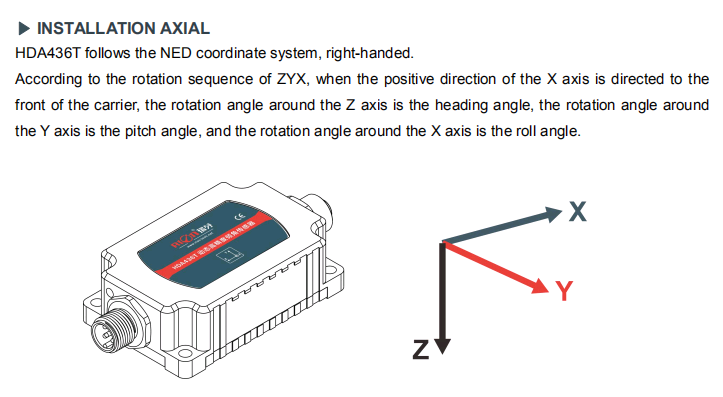

Measuring axis	/	X axis / Y axis / Z axis
Resolution		0.01°
Static accuracy	@25℃	± 0.05°
Dynamic accuracy	@25℃	± 0.1°
Bias Instability (Allan)		8°/h
Zero point temp. coefficient	-40～85°	±0.01°/℃
Sensitivity temp. coefficient	-40～85°	≤100ppm/℃
Power-on startup time	1S
Response time	0.01S
Output signal	RS485/RS232/TTL
Electromagnetic compatibility	According to EN61000 and GBT17626
MTBF	≥ 50000 hours / time
Insulation resistance	≥100 Megohm
Impact resistance	100g @ 11ms, Triaxial and identical (half sine wave)
Anti- vibration	10grms,10～1000Hz
Protection grade	IP67
Cable	2m length, wear-resistant, oil-proof, wide temperature, shielded cable 5 * 0.34mm2, wire weight 100g
Weight	295g (excluding cable)

HDA436T CAN2.0 Dynamic Attitude Sensor MEMS Gyro Sensor Angle Measuring
