RION Current 4-20mA MEMS Inclinometer High Precision Angle Finder Instrument
▶ FEATURES
★ Single / dual axis inclination measurement
★ Range ±1～±60 ° optional
★ Accuracy: Refer to technical data
★ Wide voltage input 11.5～36V
★ Output mode 4~20mA
★ Wide temperature operation -40～+ 85 ℃
★ IP67 protection
★ High vibration resistance> 2000g
★ High resolution 0.001 °

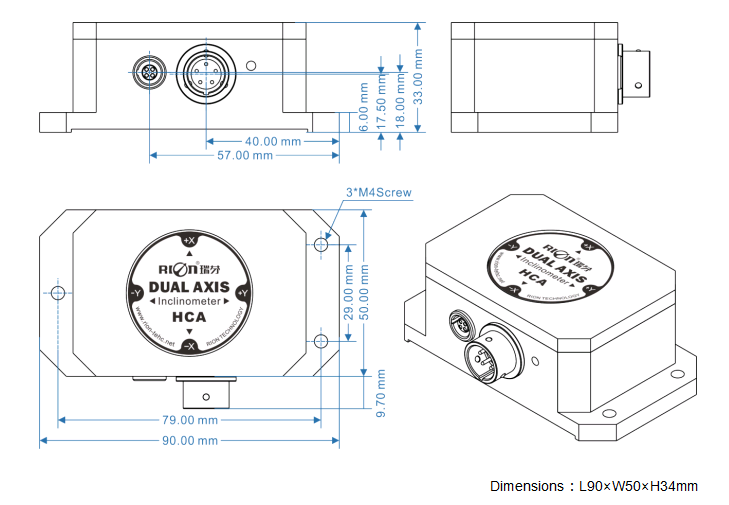

★ Small size L90mm × W59mm × H34mm (customizable)
▶ APPLICATION

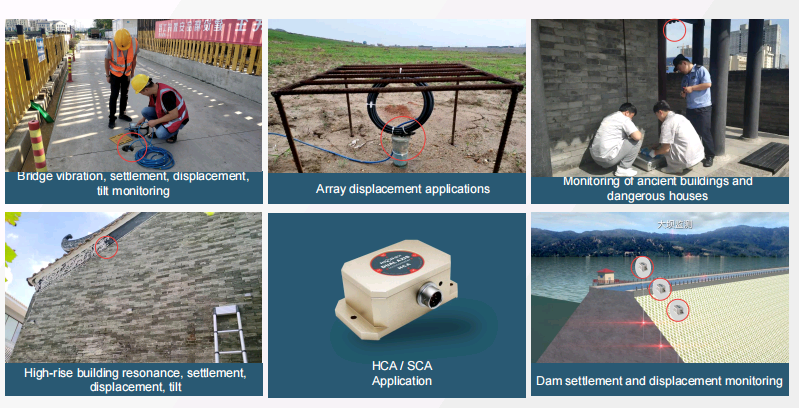

★ Equipment vehicle leveling
★ Bridge and Dam monitoring
★ High-altitude platform safety protection
★ Angle control of medical equipment
★ Attitude navigation of underground drilling rig
★ Leveling of railway gauge and gauge
★ Direction measurement based on tilt angle
★ Tilt monitoring of geological equipment
★ Mining machinery, oil drilling equipment
★ Equipment level control
★Alignment control , curve control
★ Pitch angle measurement of directional satellite communication antenna
▶ TECHNICAL DATA

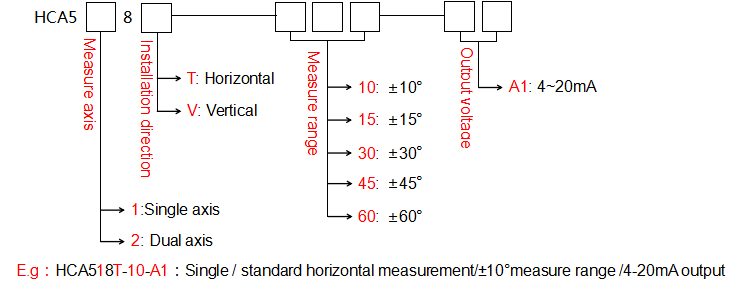

| HCA518T/HCA528T-N | CONDITION | PARAMETERS | UNIT |
| Measure range | | ±10 | ±30 | ±60 | ±90 | ° |
| Measure axis | | X/XY | X/XY | X/XY | X/XY | axis |
| Zero output | 0° output | 12 | 12 | 12 | 12 | mA |
| Resolution | | 0.001 | 0.001 | 0.001 | 0.001 | ° |
| Measure accuracy | MAXE | Room temp. | 0.005 | 0.01 | 0.02 | 0.03 | ° |
| RMSE | Room temp. | 0.003 | 0.003 | 0.005 | 0.008 | ° |
| Zero Temp. coefficient | -40～85℃ | 0.0005 | 0.0005 | 0.0005 | 0.0005 | °/℃ |
| Sensitivity temp. coefficient | -40～85℃ | ≤100 | ≤100 | ≤100 | ≤100 | ppm/℃ |
| Power on time | | 0.5 | 0.5 | 0.5 | 0.5 | S |
| Sensitivity temp. coefficient | 20Hz |
| EMC | According to EN61000 and GBT17626 |
| MTBF | ≥50000 hours/times |
| Insulation Resistance | ≥100MΩ |
| Shockproof | 100g@11ms,3 Axial Direction (Half Sinusoid) |
| Anti-vibration | 10grms,10～1000Hz |
| Protection glass | IP67 |
| Cables | Standard configuration: 2m length, wear-resistant, wide temperature, shielded cable 7P * 6.8mm aviation connector, cable weight ≤110g |
| Weight | ≤250g(Excluding cable) |
▶ MECHANICAL PARAMETERS
○ Connector: aviation connector
(1m Direct Leading Cable can Be Customized)
○ Protection level: IP67
○ Shell material: aluminum alloy shield oxidation

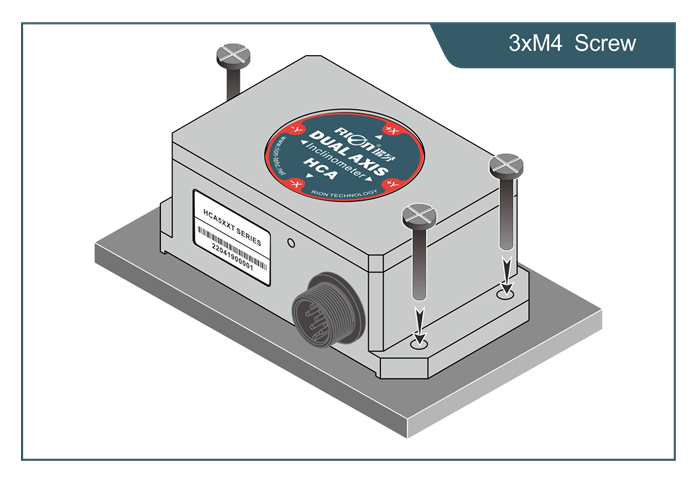

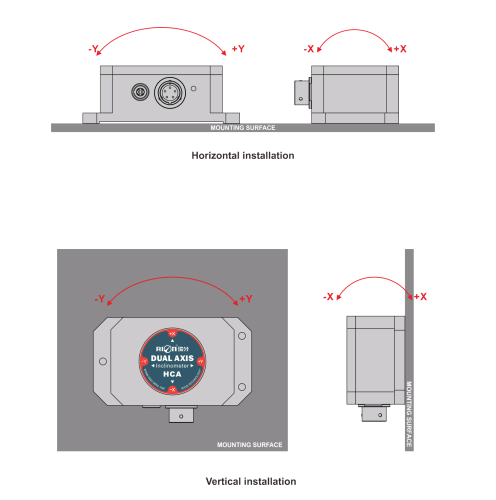

○ Installation: Three M4 screws
